Tablet Press Machine TDP-6
TDP molds For Handheld Pill Press Machine Including Tdp-0 Tdp-5 Tdp-6 High-quality Competitive Price Discreetly Fast Ship
-High-quality steel ( GrCr15 bearing steel )
-We support the customization of all types of molds.
-Please contact me for the molds catalogue.
-Whatsapp: +86 18103837887. Email: tdpstamp@outlook.com
Description
Tablet Press Machine

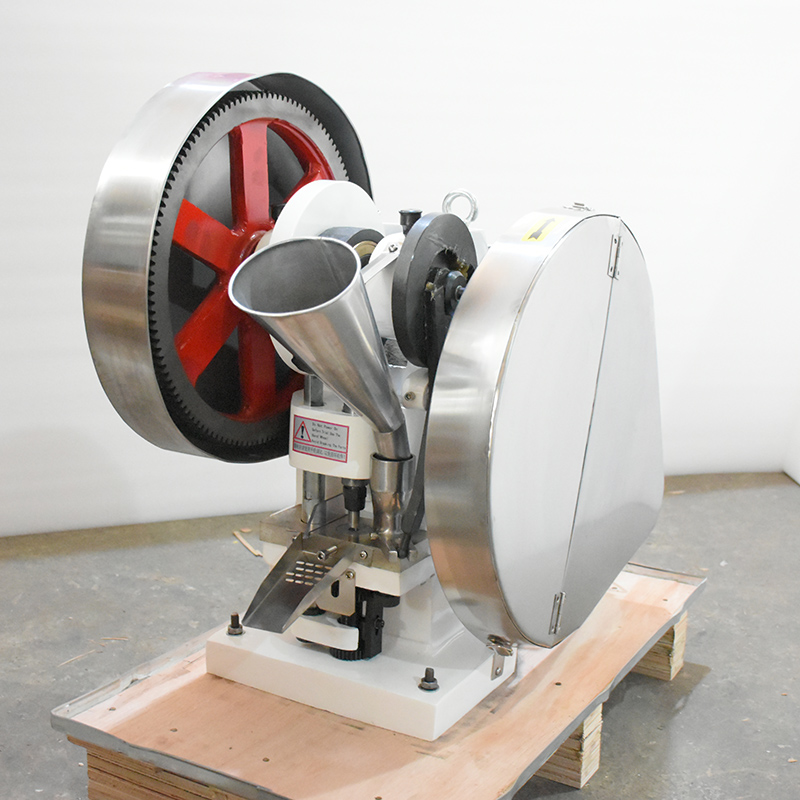

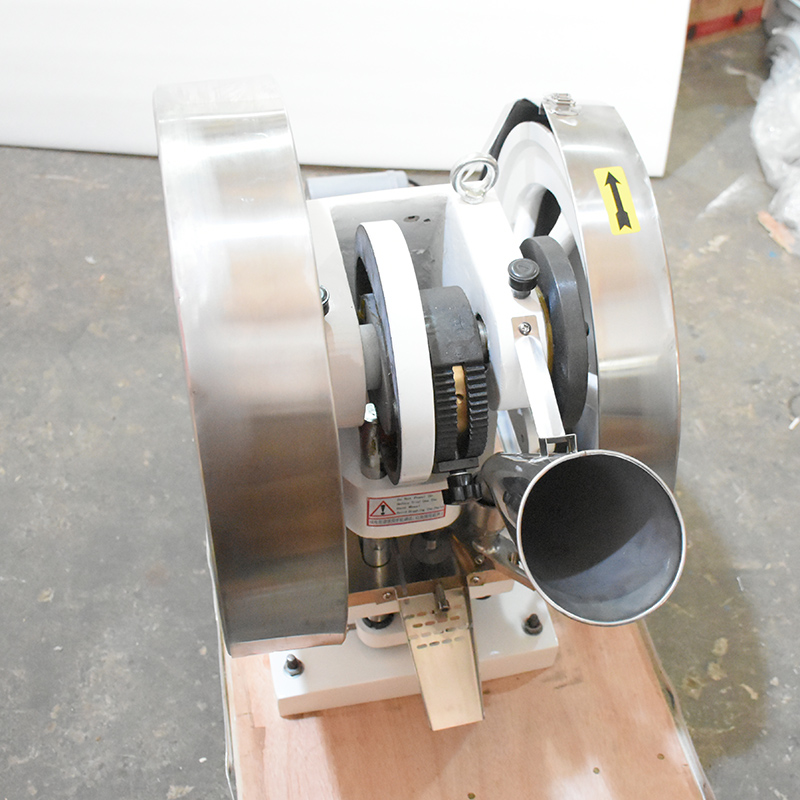

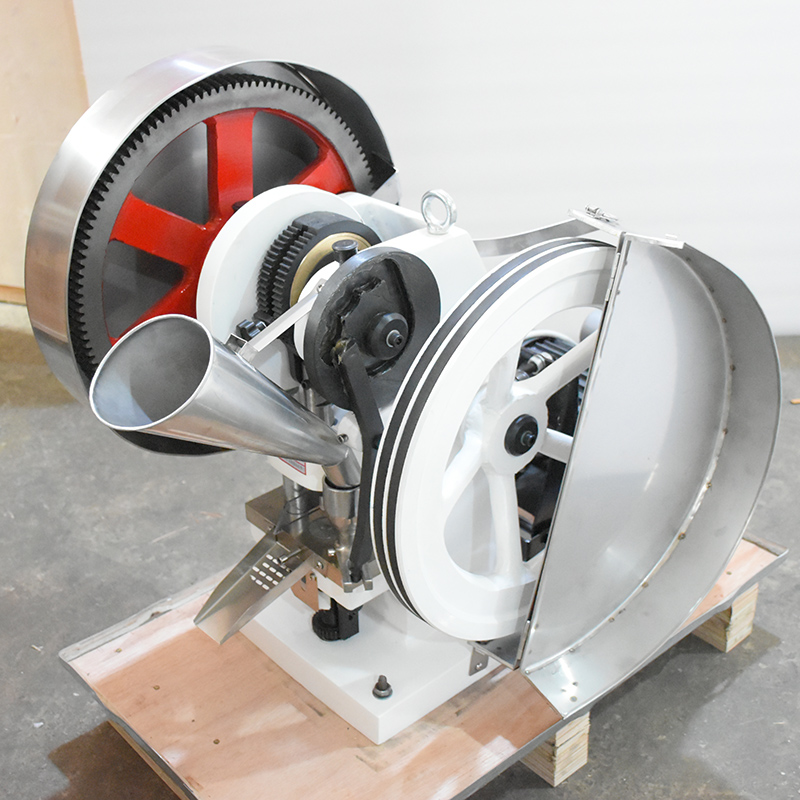

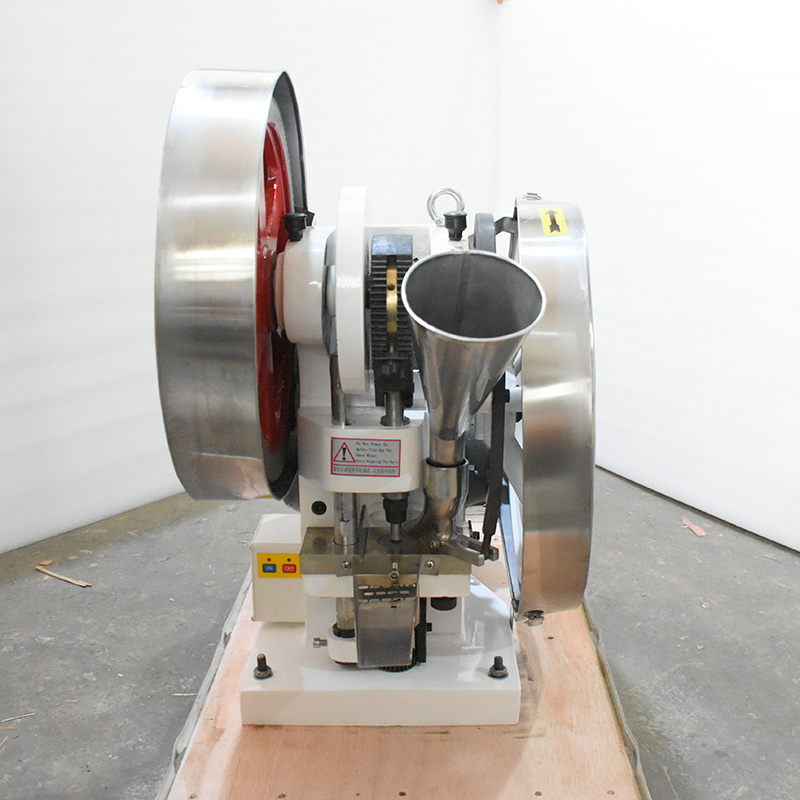

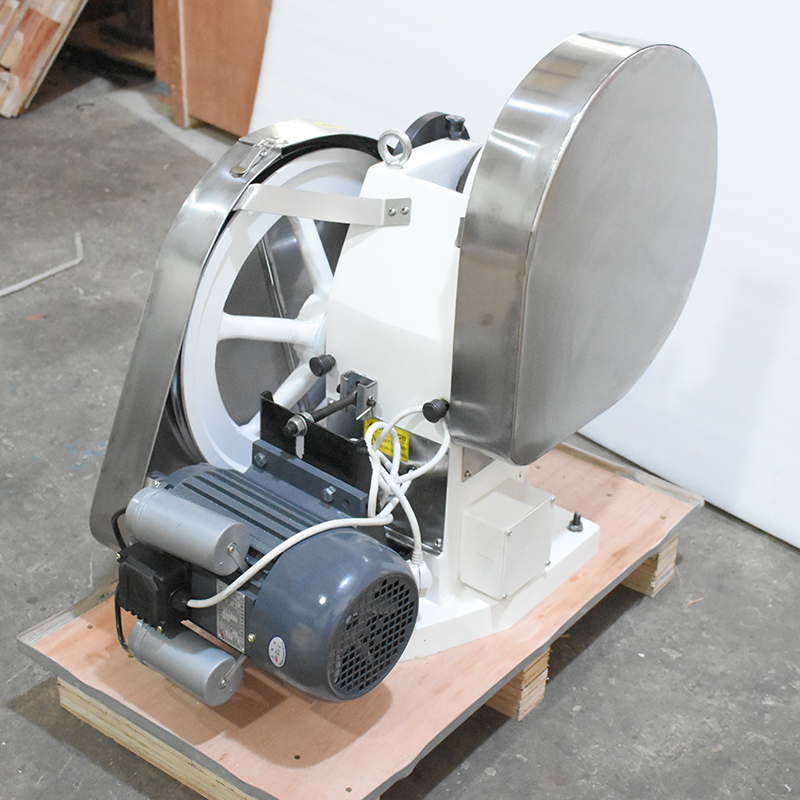

TDP-6T Single Punch Tablet Press | 60kN Manual & Electric Tablet Press Machine
Introduction
The TDP-6T single punch tablet press is a versatile dual-operation tablet press machine that combines electric power with manual hand-crank functionality. Designed for pharmaceutical factories, chemical plants, hospital pharmacies and R&D laboratories, this machine efficiently compresses powder materials into uniform tablets.
As an upgraded version of the original TDP series, the TDP-6T features enhanced frame strength, increased motor power and deeper filling capacity, allowing it to produce a wider range of tablet sizes. Its compact design, simple operation and reliable performance make it the ideal choice for small-batch production and research applications.
Key Features & Advantages
1. Dual Operation Mode (Unique Advantage)
- Electric + manual hand swing operation
- Continues working even during power outages
- Provides flexibility for different production scenarios
2. Upgraded Enhanced Design
- Improved frame strength and 1.5kW motor power compared to original TDP models
- Delivers up to 60kN maximum compression force
- Increased filling depth (up to 15mm) expands tablet specification range
3. Compact & Portable
- Small footprint (780×450×690mm) saves valuable workspace
- Lightweight design (150kg net weight) for easy relocation
- Perfect for laboratories, small workshops and mobile production
4. Easy Operation & Maintenance
- Intuitive controls require no specialized training
- Simple structure for quick disassembly and cleaning
- Low maintenance costs and long service life
5. Versatile Production Capability
- Produces high-quality tablets from various powder materials
- Meets requirements for both traditional Chinese medicine and Western medicine
- Compatible with standard and custom tablet molds
| Model | TDP-6T |
| Max. Compression Pressure | 60 kN |
| Max. Tablet Diameter | φ25 mm |
| Max. Filling Depth | 15 mm |
| Max. Tablet Thickness | 6 mm |
| Production Capacity | 3500 pcs/h |
| Motor Power | 1.5 kW |
| Motor Speed | 1400 rev/min |
| Overall Dimensions | 780 × 450 × 690 mm |
| Net Weight | 150 kg |
Wide Range of Applications
The TDP-6T tablet press is suitable for compressing various powder materials into tablets across multiple industries:
- Pharmaceutical: Prescription tablets, OTC medications, herbal supplements
- Healthcare: Vitamins, minerals, probiotics, effervescent tablets
- Chemical: Detergent tablets, water treatment tablets, catalyst tablets
- Food: Milk tablets, candy tablets, seasoning tablets
- Laboratory: R&D testing, formulation development, small batch trials
Why Choose Our TDP-6T Tablet Press?
- Unique dual power system: Works with or without electricity
- Upgraded performance: Stronger pressure and deeper filling than standard TDP models
- Proven reliability: Trusted by customers worldwide in various industries
- Customization options: Custom molds available for special tablet shapes
- Fast delivery: Ready stock available for immediate shipment
- Comprehensive support: Detailed operation manuals and technical assistance
Frequently Asked Questions
Q: Can I operate this machine manually when there is no power?
A: Yes! The TDP-6T features a hand swing function that allows you to continue production even during power outages, making it perfect for areas with unstable electricity supply.
Q: What is the maximum size of tablet it can produce?
A: The TDP-6T can produce tablets with a maximum diameter of 25mm and a maximum thickness of 6mm.
Q: Is it easy to change molds?
A: Yes, the machine features a simple mold changing design that allows you to switch between different tablet shapes and sizes quickly.
Q: Do you provide spare parts?
A: Yes, we stock all common spare parts for the TDP-6T and can ship them worldwide within 24 hours.
Get Your Quote Today
Contact us now to get a competitive quote for the TDP-6T single punch tablet press. We also offer a complete range of accessories including custom molds, feeding hoppers and replacement parts.
