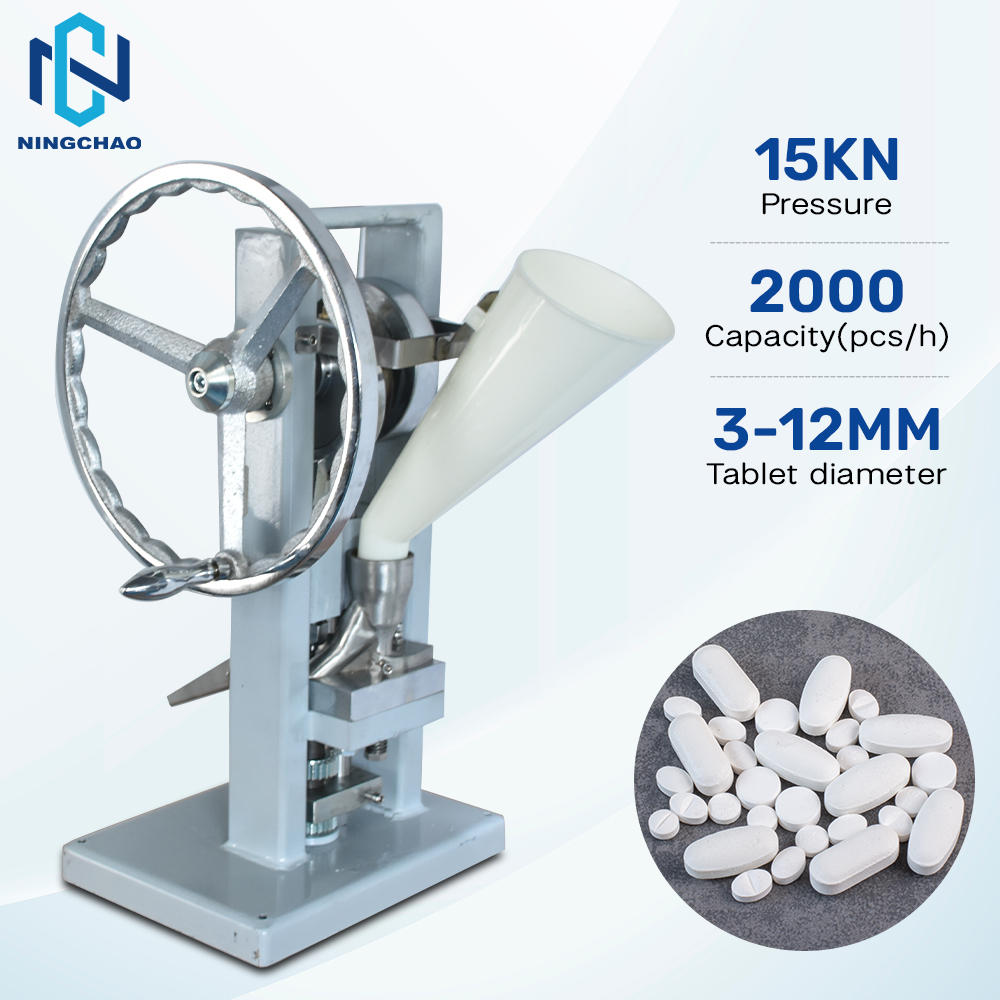

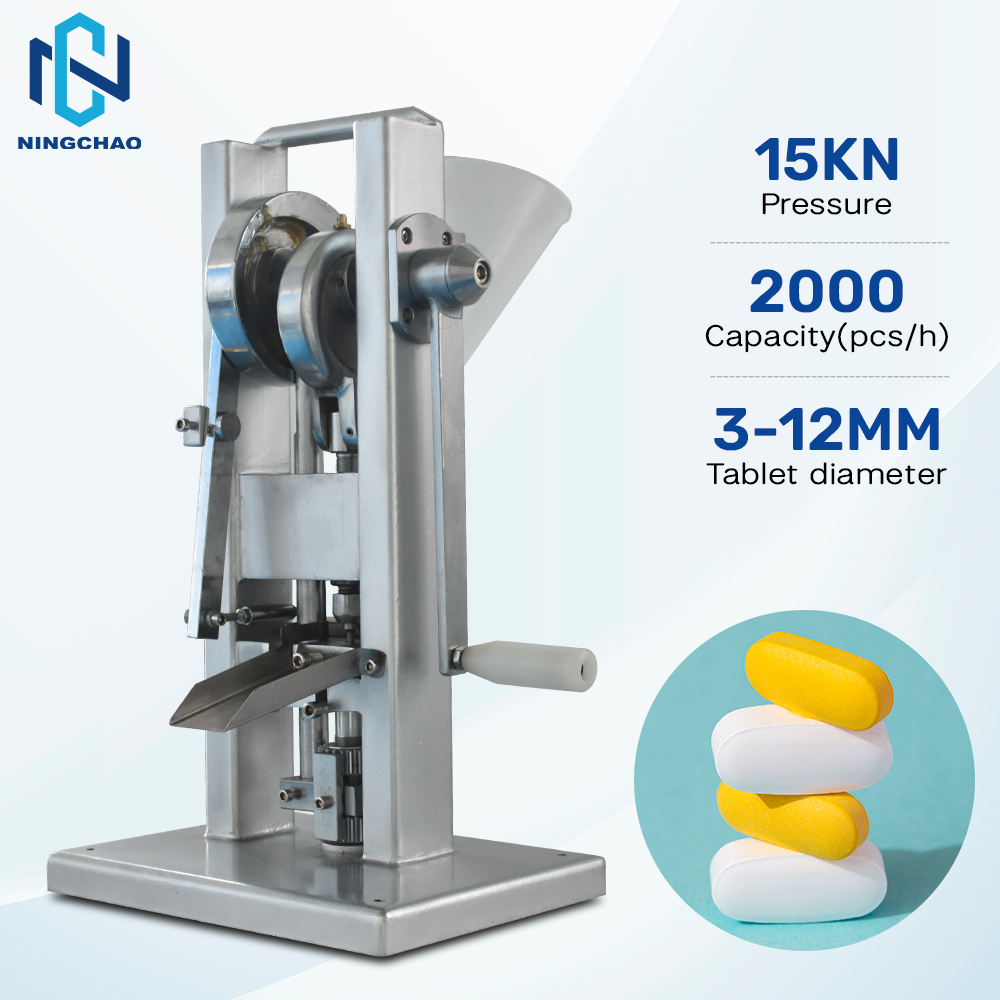

Tdp-0 Pelletizer for Single Punch Pill Tablet Press Machine Tdp0 Machine
Max. Pressure (Kn）：15
Max. Dia. of Tablet (mm)：12
Max. Depth of Fill (mm)：12
Max.Thickness of Tablet (mm)：6
Production Capacity (pcs/h)：2000（Depends on hand speed）
Overall Size(mm)：330*220*520
Net Weight (Kg)：21
Description
1.Small and light weight, making it far more portable than electric powered tablet presses
2. Advanced engineering makes it easy to produce high quality tablets without electricity
3. Up to 12mm diameter round tablets
4. Easy to use and maintain
5. Interchangeable dies
6. No running costs
7. Well engineered, reliable machine for a wide range of applications
1. Compress various granular and powdered raw materials into round tablets and various geometric shapes, suitable for laboratory system and small-scale tablet production
2. Small and light type, desktop pure manual, continuous pressing, continuous output, rotating clockwise one by one
3. It comes with a circular shallow arc die, which can be changed to press tablets of different shapes and sizes (the die can be customized)
4. The filling depth of the material and the thickness of the tablet can be adjusted, so that the weight of the tablet can be controlled
5. Low noise, convenient operation, convenient movement, and simple working principle of the machine
6. Comes with 1 specification round shallow arc mold, choose 1 from the spot 5, 6, 8, 9, 10, 12mm round diameter, place an order or tell the customer service the size you need
